Fine dust tends to settle rapidly on the filter surface of conventional machines, progressively restricting airflow and reducing vacuuming performance.

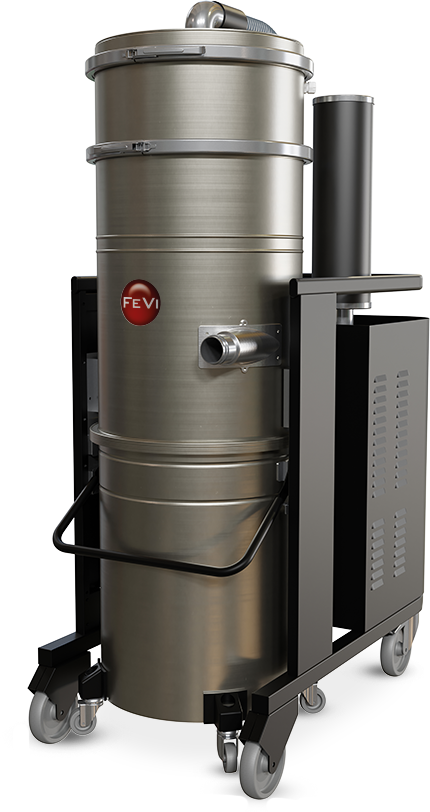

The FEVI HDC 355 ICLEAN three-phase industrial vacuum cleaner range addresses this issue at its source by using three filter cartridges operating in parallel.
During the timed automatic cycle, one cartridge is isolated and cleaned in turn, while the other two continue to maintain active airflow. This configuration ensures consistent, non-stop performance and eliminates the need to interrupt the process frequently for demanding manual cleaning by the operator.
Ideal Application: Designed for the continuous 24/7 integration with industrial machinery, automated production lines, sandblasters, and massive industrial grinding or sanding operations.
Key Advantages: Non-stop multi-filter system (3 HEPA + PTFE cartridges, 30.000 sq. cm) protected by an internal anti-abrasive shield, tangential inlet, and alternating automatic cleaning cycles.
Model Selection: Heavy-duty three-phase (400 V) 5,5 kW and 163 kg solution, customisable either as the 355 P version (High Airflow for diffuse dust) or 355 S version (High Vacuum for long pipe networks and heavy materials).
Not Suitable For: Specialist unit engineered exclusively for dry dust. It is not suitable for vacuuming liquids, fluid mixtures, or for use in ATEX areas without a dedicated custom configuration.
Non-stop vacuuming: consistently clean filters for machines in continuous production
Thanks to this engineered technology, models equipped with an automatic cleaning system ensure consistent vacuuming performance, managing filter cleaning independently without any reduction in pressure and without requiring the company to stop its production lines.
Who it is recommended for
FEVI HDC 355 ICLEAN is suitable for demanding applications where fine or abrasive dust is generated continuously and in large quantities:
Discover the main application sectors
- Manufacturing industries, automated systems and continuous production lines;
- Mechanical processing and heavy metalworking industries;
- Grinding, industrial sanding and surface preparation operations;
- Dry processing of mineral materials, cement plants, plaster and bricks;
- Maintenance departments and connection to professional abrasive blasting systems;
- Localised centralised extraction systems or applications involving medium-length or long piping systems.
Main applications
Connection to production machinery
The 5.5 kW three-phase blower, 30,000 cm² filter surface area and automatic cleaning system make the model ideal for remaining active for prolonged periods while directly connected to production machinery. Before configuration, we assess the required airflow, necessary vacuum pressure, inlet diameter, piping length, number of bends and hourly quantity of dust produced.
Industrial grinding and sanding
Optimised to work in combination with grinders, sanders and systems that generate significant quantities of fine dust. The PTFE surface treatment of the cartridges significantly reduces dust adhesion, facilitating the release of the accumulated layer of material during operation of the cleaning system.
Abrasive processing and blasting
The system can be effectively integrated into workstations that generate abrasive dust. The tangential inlet and the internal protection shield installed in front of the cartridges create a preliminary cyclonic effect that separates heavier residues and distributes the airflow, protecting the filter media against direct impact from the material.
Mineral materials and construction dust
Ideal for capturing airborne dust generated by cement, plaster and stone. The correct configuration is defined by carefully analysing the chemical composition, particle size, abrasiveness and potential hazards of the dust within the working environment.
Why choose FEVI HDC 355 ICLEAN
5.5 kW two-stage three-phase blower: Side-channel motor for demanding and continuous industrial applications. It does not use the carbon brushes subject to normal wear in conventional single-phase motors. Routine maintenance is still required for seals, piping and valves.
Three HEPA + PTFE cartridges: Total surface area of 30,000 cm² protected by a smooth PTFE membrane that facilitates the complete release of fine dust. The certification guarantees retention of 99.995% of particles down to 0.3 microns.
Tangential inlet and internal protection: The 60 mm tangential inlet introduces the airflow from the side, creating preliminary cyclonic separation, while the internal metal shield protects the mechanical integrity of the filter cartridges.
Interchangeable modular collection: The integrated trolley allows the use of either the high-capacity 100-litre quick-release drum or the Longopac® continuous bag system, which is ideal for sealing airborne dust while reducing operator exposure.
Comprehensive safety: Equipped as standard with a safety valve protecting against excessive vacuum pressure caused by blockages, built-in motor thermal protection and an exhaust-air silencer to reduce noise within the department.
Guide to selecting the technological configurations
The HDC 355 range can be configured according to the specific logistical requirements and type of dust present within the system.
1. Application difference between the P version (High Airflow) and the S version (High Vacuum Pressure)
The blower power is identical at 5.5 kW, but the internal architecture changes the ratio between airflow and vacuum pressure:
| Application Requirement | Recommended Configuration | Performance Characteristics |
|---|---|---|
| Lightweight, airborne or dispersed dust; need for a large volume of air; connection to hoods or wide extraction openings. | 355 P Version (High Airflow) | Airflow: 520 m³/h Nominal vacuum pressure: 250 mBar Maximum vacuum pressure: 320 mBar |
| Heavy or granular materials; long or complex piping routes; significant pressure losses; reduced piping diameters. | 355 S Version (High Vacuum Pressure) | Airflow: 320 m³/h Nominal vacuum pressure: 450 mBar Maximum vacuum pressure: 530 mBar |
2. Selection of the three available automatic cleaning systems
| System | Mechanical Cleaning Method | Indicative Specific Application |
|---|---|---|
| ICLEAN | Automatic timed mechanical micro-vibrations applied to the cartridges. | Common fine dust and standard industrial applications requiring autonomous operation. |
| AIRCLEAN | Reverse-flow cleaning with powerful cyclic compressed-air pulses from inside the cartridges. | Particularly adhesive dust or structured applications that require pneumatic cleaning. |
| AIRCLEAN + ICLEAN | Combined simultaneous action of compressed air and micro-vibrations. | Extreme conditions involving extremely fine, electrostatic or particularly difficult-to-release dust. |
Note: All the configurations described are equipped as standard with three HEPA + PTFE cartridges and can be configured in either the P or S version.
HDC 355 Technical Data
HDC 355 P ICLEAN
| Material to be collected | Very fine dust / Dry materials |
| Motor / Technology | Two-stage three-phase side-channel blower |
| Power / Current | 5,5 kW / 10,4 A |
| Voltage / Frequency | 400 V 3P+N+E / 50 Hz |
| Airflow | 520 m3/h |
| Nominal / Maximum vacuum pressure | 250 mBar / 320 mBar |
| Vacuum inlet | Type B Tangential 60 mm |
| Dimensions / Weight | 110 x 60 h168 cm / 163 kg |
| Collection system / Capacity | Modular trolley for 100 L drum or Longopac® |
| Filtration structure | Three-cartridge multi-filter system operating in parallel (Ø 460 mm) |
| Filter media / Certification | Polyester + PTFE membrane / HEPA as standard |
| Total filter surface area | 30.000 cm2 |
| Cleaning system | Automatic timed micro-vibration cleaning |
| Final D.O.P. filter | Optional |
HDC 355 P AIRCLEAN
| Material to be collected | Clogging or electrostatic fine dust |
| Motor / Technology | Two-stage three-phase side-channel blower |
| Power / Current | 5,5 kW / 10,4 A |
| Voltage / Frequency | 400 V 3P+N+E / 50 Hz |
| Airflow | 520 m3/h |
| Nominal / Maximum vacuum pressure | 250 mBar / 320 mBar |
| Vacuum inlet | Type B Tangential 60 mm |
| Dimensions / Weight | 111 x 60 h168 cm / 163 kg |
| Collection system / Capacity | Modular trolley for 100 L drum or Longopac® |
| Filtration structure | Three-cartridge multi-filter system operating in parallel (Ø 460 mm) |
| Filter media / Certification | Polyester + PTFE membrane / HEPA as standard |
| Total filter surface area | 30.000 cm2 |
| Cleaning system | Automatic pneumatic cleaning with compressed-air pulses |
| Final D.O.P. filter | Optional |
HDC 355 P ICLEAN+AIRCLEAN
| Material to be collected | Extremely fine, persistent and highly adhesive dust |
| Motor / Technology | Two-stage three-phase side-channel blower |
| Power / Current | 5,5 kW / 10,4 A |
| Voltage / Frequency | 400 V 3P+N+E / 50 Hz |
| Airflow | 520 m3/h |
| Nominal / Maximum vacuum pressure | 250 mBar / 320 mBar |
| Vacuum inlet | Type B Tangential 60 mm |
| Dimensions / Weight | 112 x 60 h168 cm / 163 kg |
| Collection system / Capacity | Modular trolley for 100 L drum or Longopac® |
| Filtration structure | Three-cartridge multi-filter system operating in parallel (Ø 460 mm) |
| Filter media / Certification | Polyester + PTFE membrane / HEPA as standard |
| Total filter surface area | 30.000 cm2 |
| Cleaning system | Combined automatic cleaning (micro-vibrations + compressed air) |
| Final D.O.P. filter | Optional |
HDC 355 S ICLEAN
| Material to be collected | Very fine dust through long piping systems or involving heavy materials |
| Motor / Technology | Two-stage three-phase side-channel blower |
| Power / Current | 5,5 kW / 10,4 A |
| Voltage / Frequency | 400 V 3P+N+E / 50 Hz |
| Airflow | 320 m3/h |
| Nominal / Maximum vacuum pressure | 450 mBar / 530 mBar |
| Vacuum inlet | Type B Tangential 60 mm |
| Dimensions / Weight | 113 x 60 h168 cm / 163 kg |
| Collection system / Capacity | Modular trolley for 100 L drum or Longopac® |
| Filtration structure | Three-cartridge multi-filter system operating in parallel (Ø 460 mm) |
| Filter media / Certification | Polyester + PTFE membrane / HEPA as standard |
| Total filter surface area | 30.000 cm2 |
| Cleaning system | Automatic timed micro-vibration cleaning |
| Final D.O.P. filter | Optional |
HDC 355 S AIRCLEAN
| Material to be collected | Difficult fine dust from distant systems |
| Motor / Technology | Two-stage three-phase side-channel blower |
| Power / Current | 5,5 kW / 10,4 A |
| Voltage / Frequency | 400 V 3P+N+E / 50 Hz |
| Airflow | 320 m3/h |
| Nominal / Maximum vacuum pressure | 450 mBar / 530 mBar |
| Vacuum inlet | Type B Tangential 60 mm |
| Dimensions / Weight | 114 x 60 h168 cm / 163 kg |
| Collection system / Capacity | Modular trolley for 100 L drum or Longopac® |
| Filtration structure | Three-cartridge multi-filter system operating in parallel (Ø 460 mm) |
| Filter media / Certification | Polyester + PTFE membrane / HEPA as standard |
| Total filter surface area | 30.000 cm2 |
| Cleaning system | Automatic pneumatic cleaning with compressed-air pulses |
| Final D.O.P. filter | Optional |
HDC 355 S ICLEAN+AIRCLEAN
| Material to be collected | Critical and clogging dust through long ducted systems |
| Motor / Technology | Two-stage three-phase side-channel blower |
| Power / Current | 5,5 kW / 10,4 A |
| Voltage / Frequency | 400 V 3P+N+E / 50 Hz |
| Airflow | 320 m3/h |
| Nominal / Maximum vacuum pressure | 450 mBar / 530 mBar |
| Vacuum inlet | Type B Tangential 60 mm |
| Dimensions / Weight | 115 x 60 h168 cm / 163 kg |
| Collection system / Capacity | Modular trolley for 100 L drum or Longopac® |
| Filtration structure | Three-cartridge multi-filter system operating in parallel (Ø 460 mm) |
| Filter media / Certification | Polyester + PTFE membrane / HEPA as standard |
| Total filter surface area | 30.000 cm2 |
| Cleaning system | Combined automatic cleaning (micro-vibrations + compressed air) |
| Final D.O.P. filter | Optional |
Comparison with other FEVI ranges
Difference compared with FEVI HDC 155 BASIC (5.5 kW)
They share the same 5.5 kW motor power and P/S performance modularity, but differ radically in their filtration systems. The 155 BASIC model uses a star filter with manual or semi-automatic cleaning, making it an ideal versatile machine for solids, liquids and ordinary dust. HDC 355 ICLEAN instead uses a three-cartridge HEPA + PTFE system with alternating non-stop automatic cleaning, making it a specialised unit designed specifically to prevent rapid clogging caused by fine dust.
Difference compared with FEVI TDC30 ICLEAN (3 kW)
TDC30 ICLEAN is a more compact machine equipped with a 3 kW three-phase blower. HDC 355 ICLEAN represents a higher-performance solution thanks to its 5.5 kW blower. It becomes the required choice when the system piping is longer, pressure losses are significant, material must be transported from very distant points or the connected production machine generates large volumes of dust requiring precise engineering selection between the P and S configurations.
Difference compared with the PULSE and specialist ranges
PULSE industrial vacuum cleaners are designed to manage fine dust in combination with Longopac® systems, but the single-phase versions are intended for craft or intermittent applications. HDC 355 ICLEAN provides a robust three-phase industrial motor, an extended filter surface area of 30,000 cm² and three selectable automatic cleaning systems, positioning it at the highest level of industrial efficiency. For the specific and exclusive management of oils and metal swarf or for areas with potentially explosive atmospheres, we recommend considering our dedicated Oil and Swarf Industrial Vacuum Cleaner ranges or the relevant ATEX-certified versions.
Do you need to collect fine dust from machinery or support a continuous production line?
Describe the nature of the material, the estimated hourly quantity, the exact distance from the extraction point, the piping layout and the total duration of the operating cycle.
We will analyse your actual application to configure the ideal combination: from selecting the P or S version to choosing the most suitable cleaning system—ICLEAN, AIRCLEAN or combined—and defining the final accessory or any requirement for an ATEX structure.
Contact us to size the industrial vacuum cleaner best suited to optimising your production process.
FEVI HDC 355 ICLEAN FAQ
Is FEVI HDC 355 ICLEAN single-phase or three-phase?
Read the answer
It is a three-phase industrial vacuum cleaner powered at 400 V and equipped with a high-performance 5.5 kW two-stage side-channel blower with thermal protection.
Which materials is it specifically designed for?
Read the answer
It is designed and optimised for the continuous collection of fine, extremely fine and airborne dust that would rapidly clog conventional industrial filters.
What is the difference between the 355 P and 355 S versions?
Read the answer
The P version prioritises high airflow of 520 m³/h, making it ideal for capturing lightweight dust or using wide hoses. The S version prioritises high vacuum pressure of up to 530 mBar, making it essential for overcoming pressure losses in very long piping systems or lifting heavier materials.
How many filters does the system use and what is their efficiency?
Read the answer
It uses a multi-filter system consisting of three aluminised-polyester cartridges with a PTFE membrane and HEPA absolute filtration as standard, providing a total surface area of 30,000 cm² and retaining 99.995% of dust particles measuring 0.3 microns.
Does vacuuming stop while the machine cleans the filters?
Read the answer
No. The system cyclically isolates and cleans only one cartridge at a time using a solenoid. While that cartridge is being cleaned, the other two continue vacuuming at full capacity, ensuring complete continuity of the working airflow.
How do you choose between the ICLEAN, AIRCLEAN and combined systems?
Read the answer
The ICLEAN micro-vibration system is ideal for standard industrial fine dust. Compressed-air AIRCLEAN is recommended for dust that tends to adhere electrostatically to the filter walls. The combined system integrates both technologies and is the optimal choice for the most critical dust that is particularly difficult to release.
Can it collect liquids or spills?
Read the answer
No. This model is specifically designed for fine, dry dust. Collecting fluids would compromise the effectiveness of the HEPA cartridges. For applications involving liquids or mixed materials, we recommend considering our versatile HDC W 155 BASIC range.
Is an ATEX-certified version available?
Read the answer
Yes. The HDC 355 family includes configurations designed in accordance with ATEX requirements and equipped with dedicated conductive cartridges. These must be assessed and sized according to the customer’s specific hazardous-area classification.
