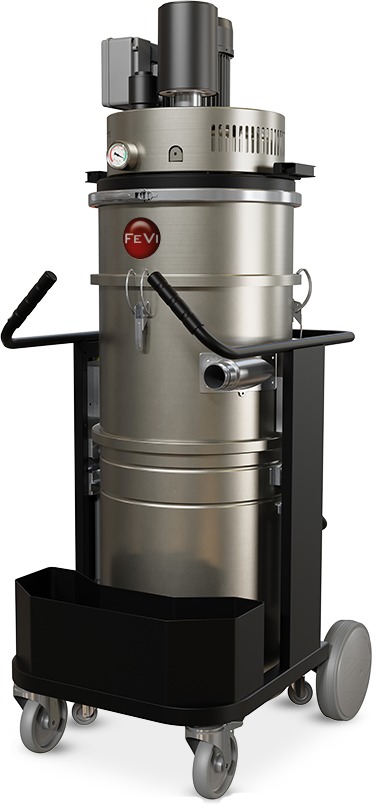

The FEVI TDC30 ICLEAN represents an advanced solution in the field of three-phase industrial vacuum cleaners. Fine dust can rapidly reduce vacuuming efficiency when it settles on the filters and restricts airflow.
FEVI TDC30 ICLEAN addresses this issue through a system featuring three filter cartridges and automatic cyclic cleaning. While one cartridge is isolated and cleaned through micro-vibrations, the other cartridges continue operating.
This helps reduce interruptions for manual cleaning and maintain more consistent performance during prolonged industrial applications. The automatic cycle operates without external pneumatic connections dedicated to filter cleaning.
Ideal Application: Designed for the intensive and prolonged suction of fine or ultra-fine dust generated directly by production machinery, sandblasters, or industrial grinding stations.
Key Advantages: Patented solenoid system with automatic micro-vibration cleaning (ICLEAN) and a multi-filter unit featuring 3 HEPA + PTFE cartridges (20.500 cm²) protected against abrasive media.
Model Selection: Heavy-duty three-phase (400 V) industrial solution with a 3 kW turbine and 105 kg weight, ideal if you require maximum 24/7 operational continuity without airflow drops.
Not Suitable For: Specialist configuration strictly dedicated to dry dust. It is not suitable for vacuuming liquids, wet mixtures, or for use in ATEX hazardous areas.
Modular Collection: Flexible trolley customizable either with a high-capacity 100-liter quick-release rigid drum or a jobsite-ready Longopac® continuous bag system.
Zero Downtime: The automatic cyclical cleaning operates by isolating one cartridge at a time every two minutes via micro-vibrations, while the others continue working at full capacity.
Pneumatic Independence: The filter cleaning cycle is completely autonomous and managed internally by the machine; it does not require any connection to external compressed air lines.
Flow Efficiency: Equipped with a robust 60 mm tangential inlet, optimized to improve the cyclonic effect and preserve the filters from direct dust impact.
Non-stop vacuuming: consistently clean filters for machines in continuous production
Thanks to this technology, models equipped with the ICLEAN cleaning system maintain consistent vacuuming performance by cleaning the filters autonomously, without operator intervention and without interrupting suction.
How does the ICLEAN system work?
The ICLEAN system was developed to maintain high filtration efficiency during prolonged and continuous operation.
Discover how it works
All three filter cartridges operate simultaneously during vacuuming. After a cycle of approximately two minutes, the system automatically begins cleaning one cartridge:
- the solenoid closes the airflow through the filter being cleaned;
- the dust loses part of the force holding it to the surface;
- micro-vibrations help detach the material;
- the dust falls into the collection system;
- the cartridge returns to operation;
- the cycle continues with the other filters.
The other cartridges continue vacuuming during cleaning, keeping the machine’s airflow active.
High standards with HEPA filtration and PTFE treatment
The machine uses three filter cartridges with HEPA + PTFE treatment and a stated total surface area of 20,500 cm². The PTFE coating helps release dust during cleaning and makes the system more suitable for fine particles than traditional textile filters.
FEVI TDC30 ICLEAN features
- 3 kW three-phase side-channel blower for prolonged industrial applications
- Suitable for continuous 24/7 operation without frequent major maintenance
- Standard safety valve to protect the blower and silencer to reduce noise
- MULTI-filter system – No. 3 HEPA + PTFE cartridges installed inside the 460 mm filter chamber
- Patented solenoid system for temporarily closing the filter during cleaning
- Industrial vacuum cleaner with automatic micro-vibration filter cleaning and no external pneumatic connections
- Internal filter protection to reduce the direct impact of abrasive materials and improve the cyclonic effect
- Tangential inlet with a 60 mm connection
- Extremely robust industrial construction
- Modular trolley for a 100-litre drum or Longopac® system, according to internal procedures
Why choose FEVI TDC30 ICLEAN?
The FEVI TDC30 ICLEAN model combines the power of a three-phase blower with the continuity provided by the automatic ICLEAN system. The cartridges are cleaned alternately, preventing the industrial vacuum cleaner from stopping completely during the automatic cycle. It is the ideal choice when working with fine or very fine dust, the operating cycle is prolonged, vacuuming cannot be interrupted frequently and the application does not require ATEX certification.
Technical Data
TDC30 ICLEAN
| Material to be collected | Very fine dust |
| Motor | Blower |
| Power | 3 kW |
| Voltage | 400 V 3P+N+E |
| Frequency | 50 Hz |
| Current | 6,7 A |
| Airflow | 320 m3/h |
| Vacuum pressure | 320 mBar 50 Hz |
| Maximum vacuum pressure | 250 mBar |
| Inlet | Type B Tang. 60 mm |
| Dimensions | 80x67 h174 cm |
| Weight | 105 kg |
| Collection system | Drum / Longopac® |
| Collection capacity | 100 L / Longopac® |
| Longopac | Yes |
| Filter chamber diameter | Ø 460 mm |
| Filter type | 3x Cartridge |
| Filter properties | HEPA + PTFE |
| Filter surface area | 20.500 cm2 |
| Cleaning system | Automatic ICLEAN |
| HEPA filter type | Optional |
Who it is recommended for
FEVI TDC30 ICLEAN is suitable for companies that need to collect fine dust frequently or for prolonged periods, particularly when a single-phase industrial vacuum cleaner or a manual filter-cleaning system does not provide sufficient operating continuity. It is particularly suitable for production departments, manufacturing industries, mechanical processing, surface preparation and treatment, industrial construction, plants and automated lines, structured workshops, industrial maintenance, collecting dust generated by machinery during production and applications requiring continuous vacuuming or prolonged operating cycles.
Difference compared with FEVI 350 ICLEAN: Both models are designed for fine dust and use the automatic ICLEAN system, but they meet different requirements. FEVI 350 ICLEAN uses a single-phase power supply, three bypass motors rated at 3300 W and is suitable for worksites, sanders and flexible or non-continuous professional applications with a traditional drum. FEVI TDC30 ICLEAN uses a three-phase power supply, a 3 kW side-channel blower for prolonged applications, modular collection through a drum or Longopac® and is suitable for production machinery and industrial departments.
Technical Comparison and Alternative Models
Compared with FEVI BT / WT 753 BASIC
FEVI BT / WT 753 BASIC and FEVI TDC30 ICLEAN both use a 3 kW three-phase blower, but their filtration systems are very different. The BASIC model uses a polyester star filter with manual cleaning, providing greater versatility for ordinary dust, solids and liquids in a simple configuration. TDC30 ICLEAN uses three HEPA + PTFE cartridges with automatic ICLEAN cleaning, specifically designed for fine dust, with vacuuming remaining active during cleaning and a drum or Longopac® collection system. Choose TDC30 ICLEAN when fine dust is the main concern.
Compared with the PULSE range
PULSE industrial vacuum cleaners use a filtration and collection system designed for fine dust and Longopac®, but some models are single-phase and more compact. FEVI TDC30 ICLEAN provides a three-phase blower, greater suitability for prolonged operation, three cyclically cleaned cartridges, modular collection and a connection better suited to production machinery. The choice must take into account the duration of the cycle, required airflow, available space, electrical power supply and quantity of dust.
When to choose FEVI TDC30 ICLEAN
Choose FEVI TDC30 ICLEAN when you need to collect fine or very fine dust, have a 400 V three-phase power supply, need to connect the vacuum cleaner to production machinery and the operating cycle is prolonged. It is ideal when you require automatic filter cleaning to reduce clogging without frequently interrupting vacuuming, want the flexibility of choosing between a drum and Longopac® and the application does not require ATEX certification.
When to consider another FEVI model
Consider FEVI 350 ICLEAN when you need an easy-to-use single-phase industrial vacuum cleaner for fine dust in workshops, body shops or worksites; FEVI BT / WT 753 BASIC for ordinary dust, solids or liquids without automatic cleaning; and FEVI 221 PULSE for a single-phase fine-dust vacuum cleaner with advanced HEPA filtration and Longopac® collection. Choose an ATEX industrial vacuum cleaner for classified areas or potentially explosive dust, and a dust collector to capture airborne dust from hoods, workbenches and localised sources.
Main Applications of Three-Phase Industrial Vacuum Cleaners
Extraction from production machinery
FEVI TDC30 ICLEAN can be connected to machinery that generates fine dust during the production cycle. The three-phase blower and automatic filter cleaning make it suitable when the source produces dust regularly and vacuuming must continue without frequent shutdowns for manual maintenance.
Collection of sanding dust
It is suitable for plants, machinery and workstations that generate dust from grinding, sanding, finishing or surface preparation. The hose diameter, inlet and configuration must be selected according to the connected machine, required airflow and distance from the extraction point.
Industry, production departments and construction
It can be used to collect fine dust deposited on machinery, floors and workstations. In construction and dry processing, it can be considered for structured applications involving cement, plaster and mineral dust when the quantity and operating duration require a three-phase industrial vacuum cleaner, subject to verification of compatibility, particle size and potential hazards.
Abrasive blasting and abrasive processing
FEVI TDC30 ICLEAN can be integrated into abrasive blasting systems or abrasive processing operations to collect compatible fine dust and residues. The internal filter protection and tangential inlet help reduce the direct impact of abrasive material on the filter surface.
Modular collection system: Drum or Longopac®
The modular trolley can be configured with a 100-litre quick-release drum, suitable when the material must be collected inside a rigid container, moved and emptied according to internal procedures, providing significant collection autonomy in industrial applications involving substantial quantities of dust.
Alternatively, the Longopac® continuous bag system is suitable when the material must be collected directly inside a replaceable bag, simplifying the division of collected quantities and reducing direct contact with dust during bag sealing and replacement.
The choice between a drum and Longopac® should depend on the type of dust, quantity collected, handling method, discharge frequency, company procedures and any potential hazards associated with the material.
Usage and Sizing Recommendations
Before configuring FEVI TDC30 ICLEAN, we assess together: dust composition and particle size, quantity produced, material temperature, possible abrasiveness, vacuuming frequency and duration, hose diameter and length, distance from the machine, system pressure loss, need for a drum or Longopac®, any dust classification, need for a final HEPA filter and environmental conditions within the department.
Sizing should not be based solely on blower power. Airflow, vacuum pressure, hose diameter and dust characteristics must be analysed together to ensure maximum efficiency and service life.
Do you need to collect fine dust from a machine or production process?
Describe the material, the quantity of dust produced, the duration of the operating cycle, the distance from the extraction point and the line configuration.
Together, we will assess whether FEVI TDC30 ICLEAN is the correct solution and whether the 100-litre drum, Longopac® system or an alternative FEVI configuration would be more suitable.
Contact us to size the vacuum system best suited to your application.
FEVI TDC30 ICLEAN FAQ
Is FEVI TDC30 ICLEAN single-phase or three-phase?
Read the answer
It is a three-phase industrial vacuum cleaner powered at 400 V and equipped with a 3 kW side-channel blower.
Which materials is it designed for?
Read the answer
It is designed primarily for fine and very fine dust compatible with its filtration configuration.
Can it operate for prolonged cycles?
Read the answer
The three-phase blower is suitable for prolonged operation. The actual operating duration depends on working conditions, temperature, material and the required maintenance schedule.
How does the ICLEAN system work?
Read the answer
The system cleans one cartridge cyclically by isolating it through a solenoid and activating micro-vibrations. The other cartridges continue vacuuming.
How many filters does it use?
Read the answer
It uses three HEPA + PTFE filter cartridges with a total surface area of 20,500 cm².
Is compressed air required to clean the filters?
Read the answer
No. Automatic micro-vibration cleaning does not require a dedicated external compressed-air connection.
Can it be connected to production machinery?
Read the answer
Yes, subject to verification of airflow, vacuum pressure, piping, pressure loss and the quantity of dust generated.
Which collection system does it use?
Read the answer
It can be configured with a 100-litre quick-release drum or Longopac®.
Is a final HEPA filter available?
Read the answer
Yes. The final HEPA filter is available as an option.
Can it collect liquids?
Read the answer
The model is specifically designed for fine dust. For liquids or mixed materials, it is preferable to consider a WT industrial vacuum cleaner or a versatile model.
Is it an ATEX industrial vacuum cleaner?
Read the answer
No. For potentially explosive dust or classified areas, a dedicated ATEX model must be assessed.
What is the difference compared with a BASIC industrial vacuum cleaner?
Read the answer
The BASIC model uses a traditional filter with manual cleaning. TDC30 ICLEAN uses three cartridges and an automatic cleaning system specifically designed for fine dust.
